DJI O4 Air Unit aksessuaarid

Tootekirjeldus inglise keeles:

DJI O4 Air Unit Series
Flagship FHD FPV Digital Video Transmission

The DJI O4 Air Unit Series marks a new leap in video transmission performance, delivering a cutting-edge digital video transmission solution with higher resolution, lower latency, and extended range. Weighing just 8.2 grams, the DJI O4 Air Unit features a 1/ 2-inch image sensor capable of capturing 4K/ 60fps video, offering both portability and versatility. Taking it a step further, the DJI O4 Air Unit Pro boasts an enhanced imaging capability with a 1/ 1.3-inch image sensor, capable of recording 4K/ 120fps video. It also supports impressive features such as 10-bit D-Log M color mode and a 155° ultra-wide FOV, capturing the vast expanse of the world in unparalleled detail.

New Heights in Transmission, More Freedom in Flight
The DJI O4 Air Unit Series is equipped with the DJI O4 video transmission system, achieving ultra-low latency for more responsive controls. Paired with the dual-antenna design of the DJI O4 Air Unit Pro, the max transmission distance can reach up to 15 kilometers, and the system can automatically select the most stable frequency. Whether soaring over mountains and rivers or navigating indoor spaces, you can perform confidently and with precision.

H.265 Video Transmission
1080p/ 100fps Max Video Transmission Range
15 km Ultra-Low-Latency Video Transmission
15 ms Max Video Transmission Bitrate
60 Mbps Crisp and Fluid, Visually Striking

The DJI O4 Air Unit Series is capable of recording 4K/ 60fps video. The video transmission system utilizes H.265 video encoding, supporting high-frame-rate transmission at 1080p/ 100fps, ensuring clear and smooth real-time imagery. No matter how fast you fly, the camera view keeps up.

New Racing Mode: Unleashed Speed, Unlimited Fun
The DJI O4 Air Unit Series introduces a new Racing Mode, with video transmission latency as low as 15 milliseconds. It supports up to eight aircraft* racing simultaneously, taking you on an exhilarating, high-speed journey through the skies. * Regulations vary by country and region, and actual performance may differ.

Upgraded Imaging: Cinematic Masterpieces at Your Fingertips
The DJI O4 Air Unit features a 1/ 2-inch image sensor, capable of capturing 4K/ 60fps video. The DJI O4 Air Unit Pro goes a step further with a 1/ 1.3-inch image sensor, supporting 4K/ 120fps video recording. No need for an external action camera to achieve ultra-wide-angle, high-definition footage. Creating stunning visuals has never been so effortless.

Multiple Stabilization Modes
With a 155° ultra-wide FOV, easily navigate through complex terrains and capture breathtaking flight footage.Even in Intense Light, Create With Confidence
The DJI O4 Air Unit Pro Camera Module can be used with the DJI Avata 2 ND Filter Set (ND8/ 16/ 32). Even in bright lighting conditions, it ensures balanced exposure and true-to-life colors. This allows you to flexibly control light intake and shutter speed, easily achieving natural motion blur and making your footage more dynamic and impactful.

Compatible With Canvas Mode: Your Flights, Your Way
You have full control over what's displayed on your screen. The DJI O4 Air Unit Series supports Canvas Mode and Betaflight OSD settings. You can customize the real-time data and layout displayed on your goggles screen, making flight data clear at a glance, and enhancing your control precision.

Lightweight Design, Effortless Adaptation

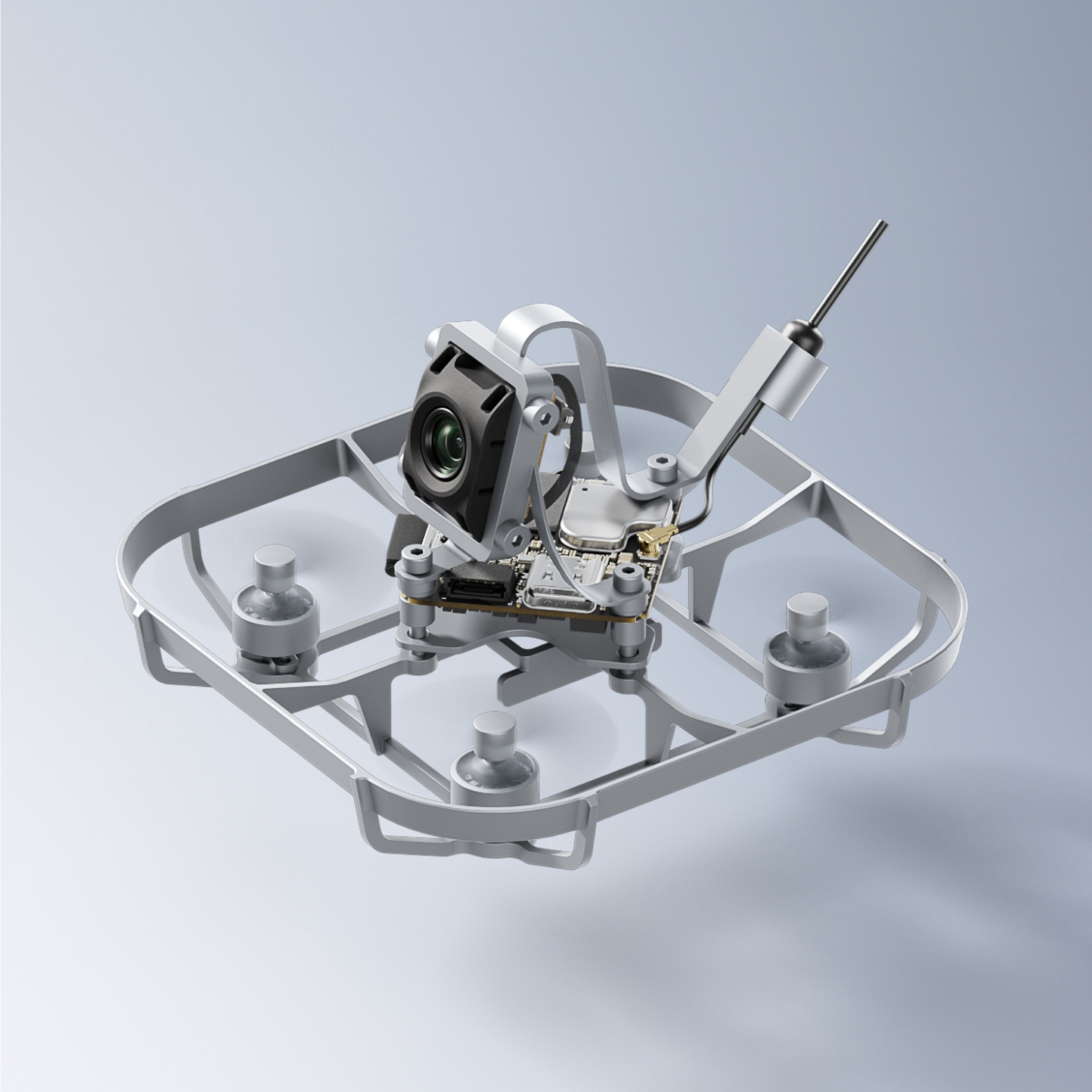

The DJI O4 Air Unit Series adopts a lightweight and portable design with extensive compatibility. Specifically, the DJI O4 Air Unit can fit drone frames of 2 inches and smaller, supporting flexible assembly to suit various creative flight scenarios. Experience the thrill of flying while capturing high-quality footage with ease.

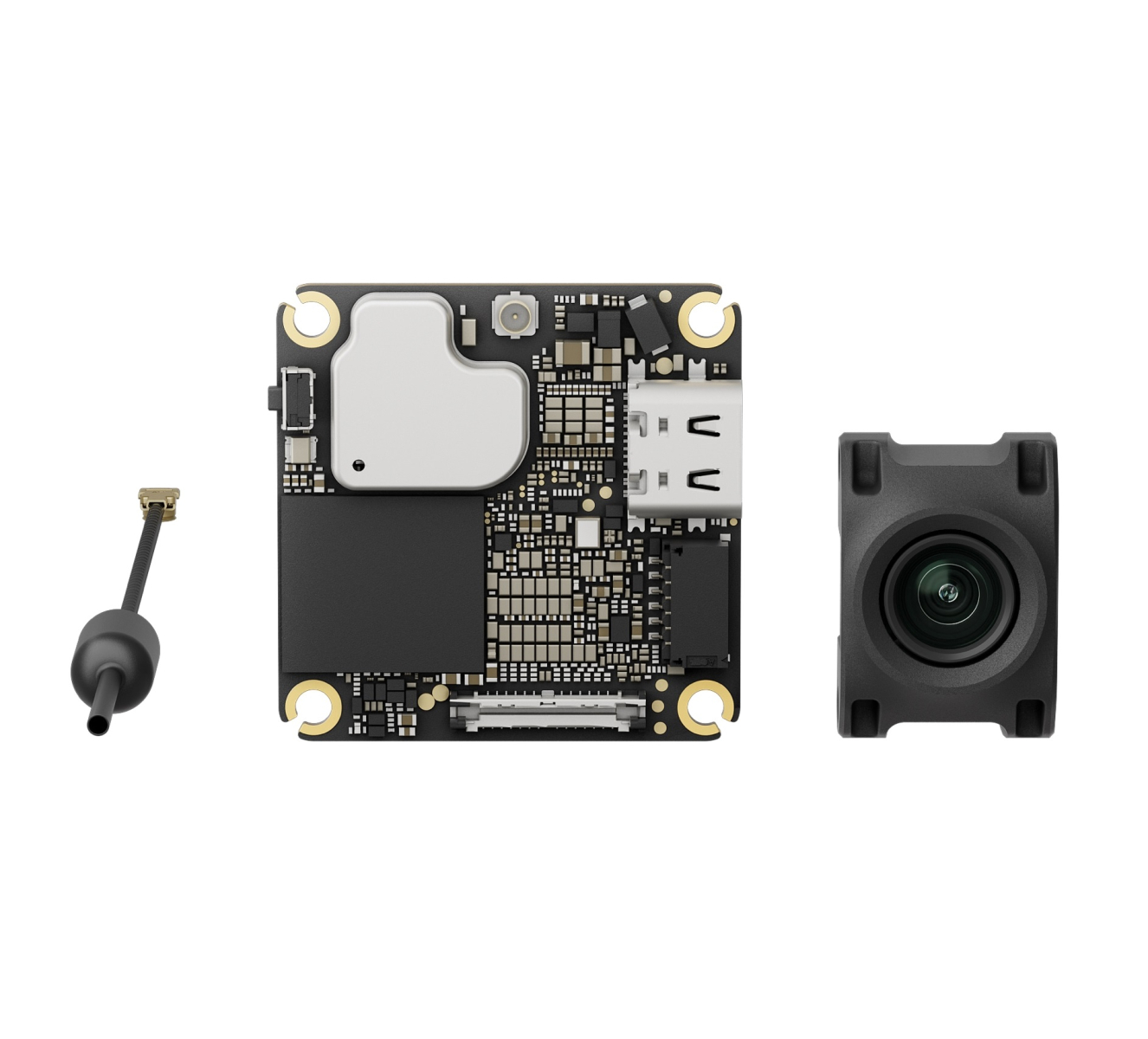

DJI O4 Air Unit Pro:
Air Unit Weight (camera module included): 32 g
Camera Module Dimensions: 25.6 × 20 × 23.3 mm
Air Unit Dimensions: 33.5 × 33.5 × 13 mm

DJI O4 Air Unit:
Air Unit Weight (camera module included): 8.2 g
Camera Module Dimensions: 13.4 × 12.4 × 16.5 mm
Air Unit Dimensions: 30 × 30 × 6 mm


SPECIFICTIONS DJI O4 Air Unit:

Air Unit Weight (camera module excluded): Approx. 5.1 g
Air Unit Weight (camera module included): Approx. 8.2 g
Antenna: Approx. 0.75 g
Dimensions:
Transmission Module: 30×30× 6 mm (L×W×H)
Camera Module: 13.44×12.36×16.50 mm (L×W×H)
Coaxial Cable: 50 mm
3-in-1 Cable: 50 mm
Antenna: 80 mm

Video Transmission
Operating Frequency: 5.170-5.250 GHz, 5.725-5.850 GHz
Transmitter Power (EIRP):
5.1 GHz: <23 dBm (CE)
5.8 GHz: <30 dBm (FCC), <14 dBm (CE), < 30 dBm (SRRC)
Lowest Latency
With DJI Goggles 3 and pick racing mode:
With 1080p/ 100fps video transmission quality, the latency is as low as 20 ms.
With DJI Goggles N3 and pick racing mode:
With 1080p/ 100fps video transmission quality, the latency is as low as 24 ms.
With DJI Goggles 2 or Goggles Integra：
With 1080p/ 100fps video transmission quality, the video transmission latency is less than 35 ms.
Max Video Transmission Range:
With DJI Goggles 3/ DJI Goggles N3: 10 km (FCC), 6 km (CE), 6 km (SRRC)
Live View Quality: 1080P@30/ 50/ 60/ 100fps
Communication Bandwidth: Max 60 MHz
Antenna: 1 antenna, 1T1R
Channels
Supports auto mode
Supports manual mode:
With DJI Goggles 3 or DJI Goggles N3: 60 MHz: 1 channel; 40 MHz: 1 channels; 20 MHz: 3 channels; 10 MHz: 3 channel
With DJI Goggles 2 or Goggles Integra： 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels

Camera
Image Sensor: 1/ 2-inch CMOS Sensor
Lens FOV: 117.6°
The equivalent focal length: 14 mm
Aperture: f/ 2.8
Focus: 0.6 m to ∞
ISO Range: 100-6400 (Auto), 100-12800 (Manual)
Video Resolution:
4K (4:3): 3840×2880@30/ 50/ 60fps
4K (16:9): 3840×2160@30/ 50/ 60fps
1080p (4:3): 1440×1080@30/ 50/ 60/ 100/ 120fps
1080p (16:9): 1920×1080@30/ 50/ 60/ 100/ 120fps
Video Format: MP4
Max Video Bitrate: 100 Mbps
Color Mode: Normal Mode
Camera FOV: Standard, Wide-Angle
EIS: RockSteady 3.0+
Stabilization function off (supports Gyroflow)

Hardware
Input Voltage: 3.7-13.2 V
Operating Temperature: -10° to 40° C
Built-in Storage: 23GB
Supported SD Cards: Not supported

Compatibility:
Supported Flight Controller System
Betaflight 4.3.0 and higher versions
Supported DJI Goggles and Remote Controllers
DJI Goggles 3 + DJI FPV Remote Controller 3
DJI Goggles N3 + DJI FPV Remote Controller 3
DJI Goggles 2/ Goggles Integra + DJI FPV Remote Controller 2

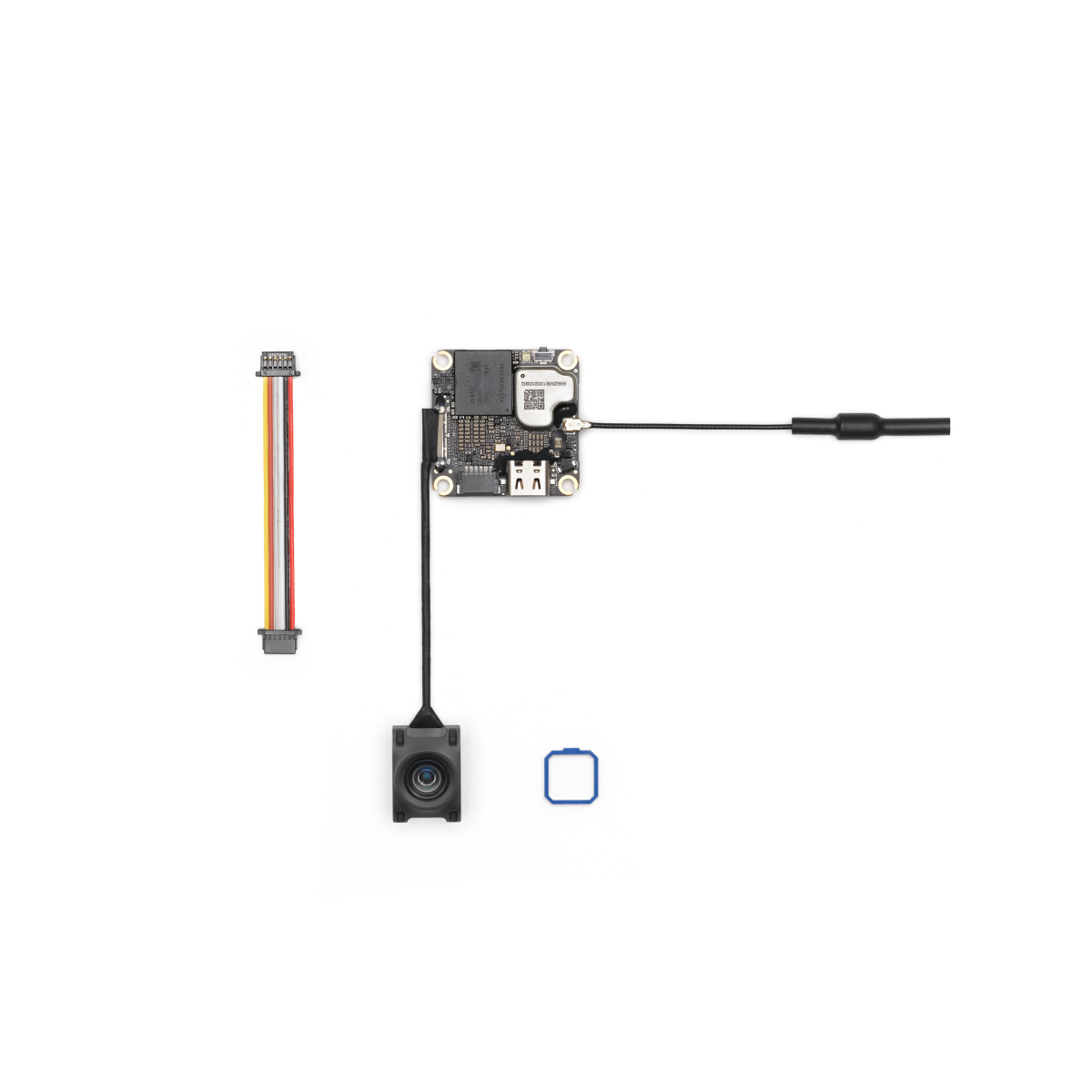

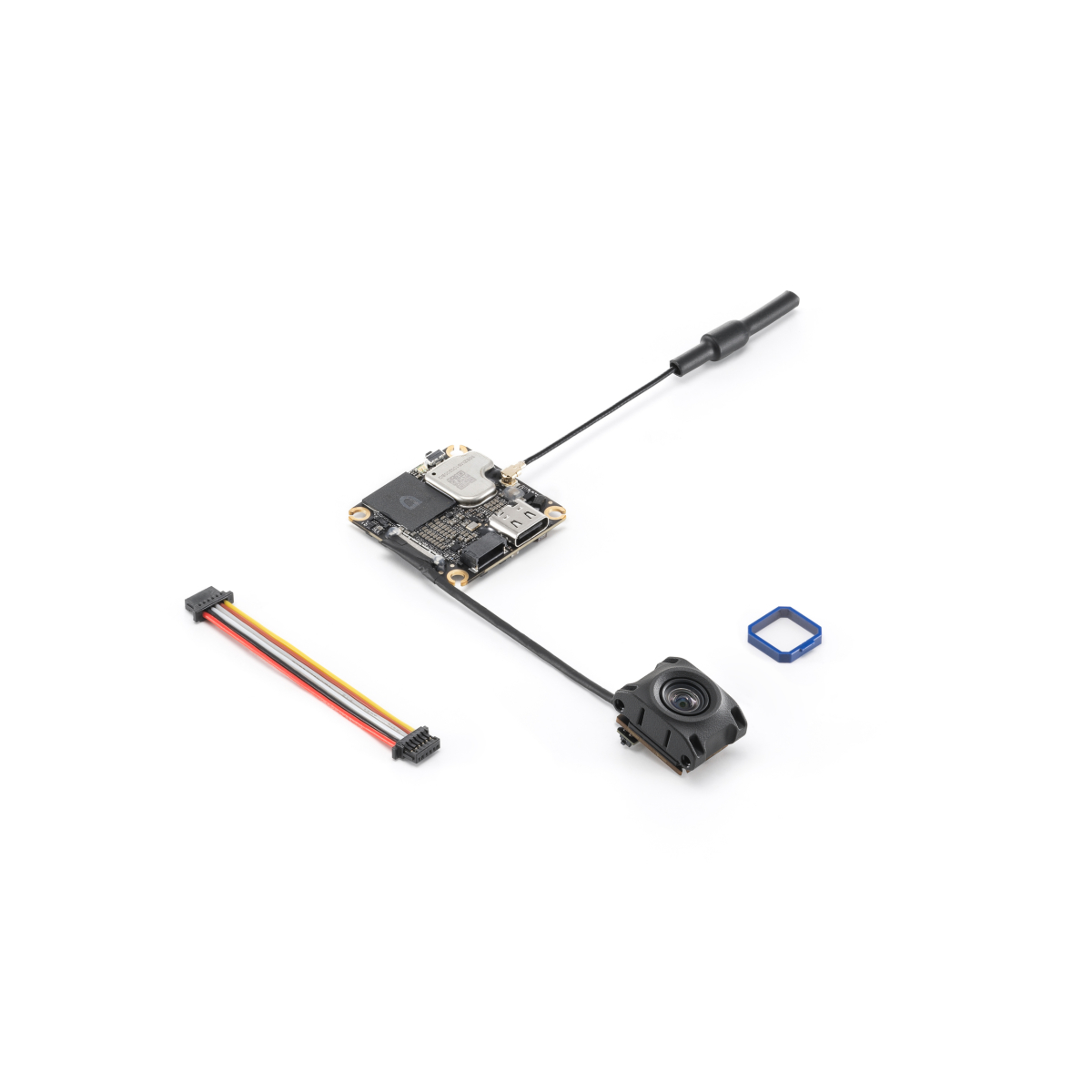

In The Box:
DJI O4 Air Unit
DJI O4 Air Unit Camera Module × 1
DJI O4 Air Unit Transmission Module × 1
DJI O4 Air Unit Antenna × 1
DJI O4 Air Unit 3-in-1 Cable × 1
